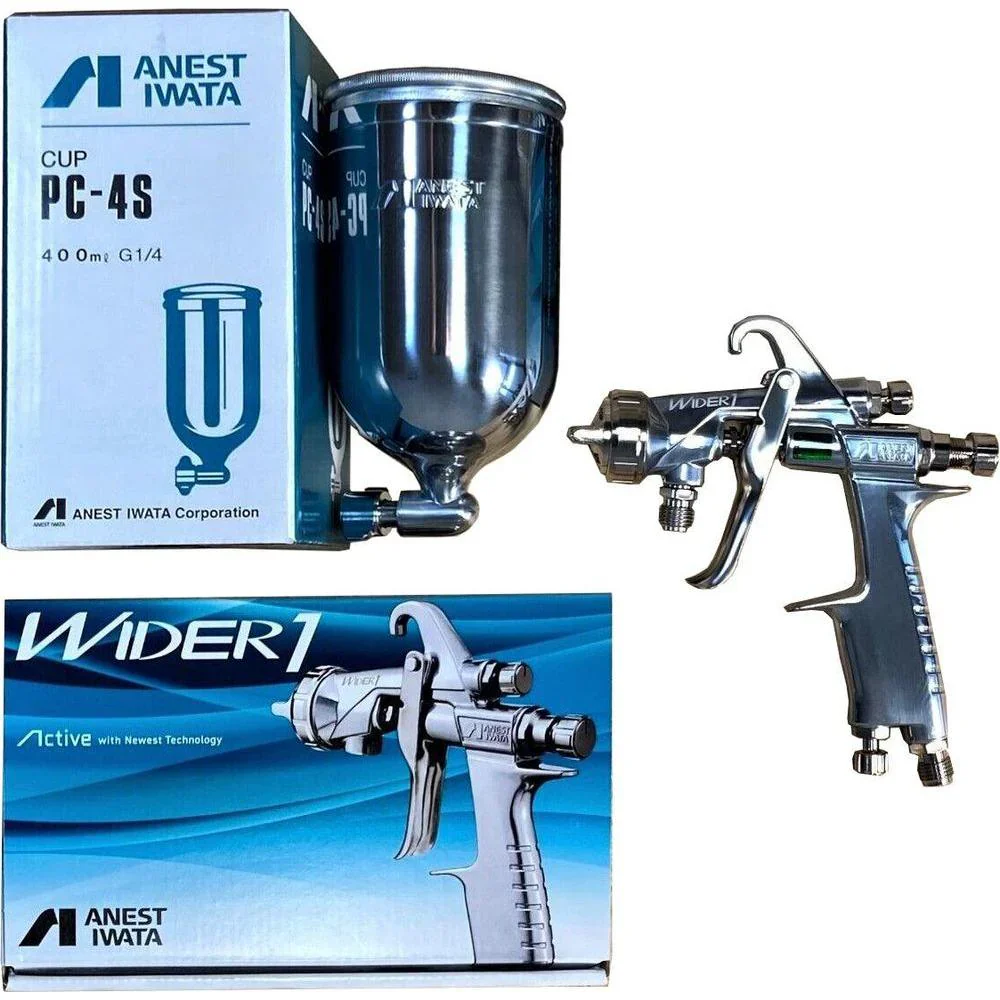

Anest Iwata WIDER1 Series Compact Paint Spray Gun
Anest Iwata WIDER1 Series Compact Paint Spray Gun
Replacement for W-101
|
Model
|
Feed
|
Nozzle Size
|
With Cup | Without Cup |
| Price | Price | |||
| WIDER-1-08E2P | Pressure | 0.8 mm | - | ₱16,100.00 |
| WIDER1-10E2P | Pressure | 1 mm | - | ₱16,100.00 |
| WIDER1-13E2P | Pressure | 1.3 mm | - | ₱16,100.00 |
| WIDER-1-15E2P | Pressure | 1.5 mm | - | ₱16,100.00 |
| WIDER1-10E1S | Suction | 1 mm | 19,200.00 | ₱15,500.00 |
| WIDER1-13K1S | Suction | 1.3 mm | 19,200.00 | ₱15,500.00 |
| WIDER1-13H2S | Suction | 1.3 mm | 19,200.00 | ₱15,500.00 |
| WIDER1-13H4S | Suction | 1.3 mm | 19,200.00 | ₱15,500.00 |
| WIDER1-15K1S | Suction | 1.5 mm | 19,200.00 | ₱15,500.00 |
| WIDER1-15H2S | Suction | 1.5 mm | 19,200.00 | ₱15,500.00 |
| WIDER1-18N1S | Suction | 1.8 mm | 19,200.00 | ₱15,500.00 |
| WIDER1-10E1G | Gravity | 1mm | 18,000.00 | ₱15,500.00 |
| WIDER1-13K1G | Gravity | 1.3 mm | 18,000.00 | ₱15,500.00 |
| WIDER1-13H2G | Gravity | 1.3 mm | 18,000.00 | ₱15,500.00 |
| WIDER1-13H4G | Gravity | 1.3 mm | 18,000.00 | ₱15,500.00 |
| WIDER1-15K1G | Gravity | 1.5 mm | 18,000.00 | ₱15,500.00 |
| WIDER1-15H2G | Gravity | 1.5 mm | 18,000.00 | ₱15,500.00 |
| WIDER1-18N1G | Gravity | 1.8 mm | 18,000.00 | ₱15,500.00 |
|
Model
|
Air Pressure
|
Air Consumption
|
Fluid Output
|
Pattern Width (mm)
|
Paint Cup
|
| WIDER-1-08E2P | 0.29 mpa | 270 nl/min | 150 ml/min | 190 mm | - |
| WIDER1-10E2P | 0.29 mpa | 270 nl/min | 200 ml/min | 220 mm | - |
| WIDER1-13E2P | 0.24 mpa | 220 nl/min | 200 ml/min | 210 mm | - |
| WIDER-1-15E2P | 0.24 mpa | 220 nl/min | 250 ml/min | 240 mm | - |
| WIDER1-10E1S | 0.24 mpa | 75 nl/min | 85 ml/min | 120 mm | PC-1S |
| WIDER1-13K1S | 0.24 mpa | 145 nl/min | 150 ml/min | 155 mm | PC-1S |
| WIDER1-13H2S | 0.24 mpa | 225 nl/min | 150 ml/min | 160 mm | PC-1S |
| WIDER1-13H4S | 0.24 mpa | 210 nl/min | 140* ml/min | 180* mm | PC-1S |
| WIDER1-15K1S | 0.2 mpa | 145 nl/min | 175 ml/min | 170 mm | PC-1S |
| WIDER1-15H2S | 0.24 mpa | 225 nl/min | 170 ml/min | 175 mm | PC-1S |
| WIDER1-18N1S | 0.24 mpa | 170 nl/min | 210 ml/min | 170 mm | PC-1S |
| WIDER1-10E1G | 0.24 mpa | 75 nl/min | 95 ml/min | 130 mm | PC-1S |
| WIDER1-13K1G | 0.24 mpa | 145 nl/min | 160 ml/min | 170 mm | PC-4S |
| WIDER1-13H2G | 0.24 mpa | 225 nl/min | 160 ml/min | 175 mm | PC-4S |
| WIDER1-13H4G | 0.2 mpa | 210 nl/min | 155* ml/min | 205* mm | PC-4S |
| WIDER1-15K1G | 0.24 mpa | 145 nl/min | 200 ml/min | 180 mm | PC-4S |
| WIDER1-15H2G | 0.24 mpa | 225 nl/min | 190 ml/min | 190 mm | PC-4S |
| WIDER1-18N1G | 0.24 mpa | 170 nl/min | 240 ml/min | - | PC-4S |
