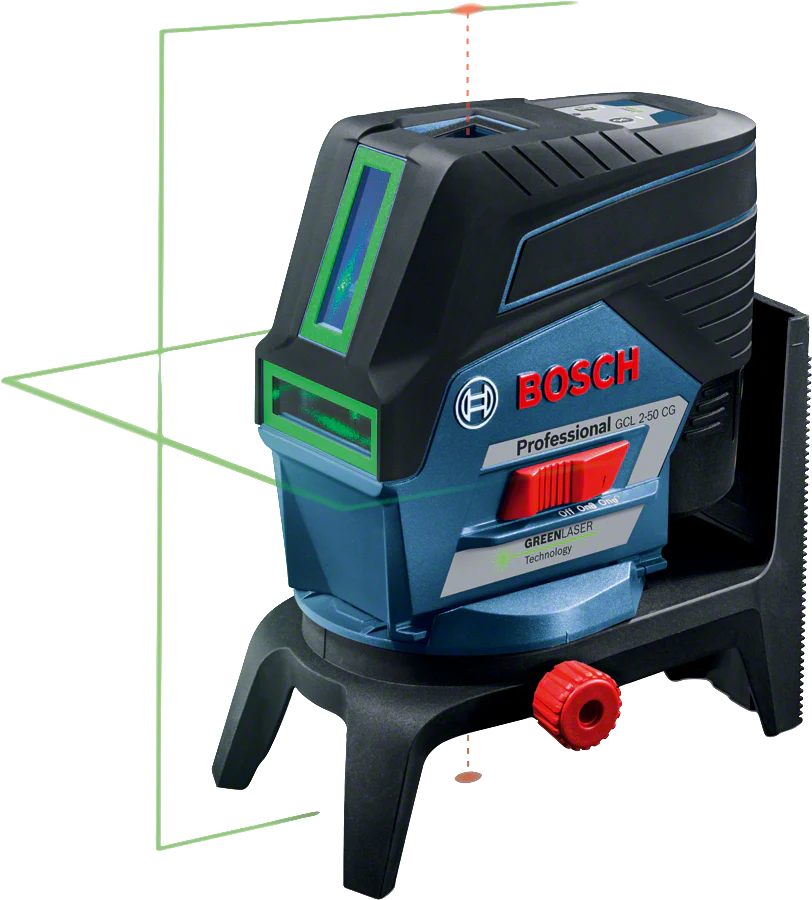

Bosch GCL 2-50 CG Combi Laser w/ Plumb Points
Combi Laser
GCL 2-50 CG
0 601 066 H00
Supreme visibility connected with smart functions
- Green horizontal and vertical lines for maximal visibility
- Bluetooth® connection to smartphone for remote control and adjustment of the tool
- Dual Power Source: Can be operated both with 12 V-LI-ion battery and with standard alkaline batteries
- Horizontal and vertical laser lines and two centred plumb points with optimal visibility
- Precise positioning of the laser lines around the plumb points – motorised positioning with RM 3 Professional (optional), using an app or remote control or manual positioning with RM 2 Professional
- High visibility of the laser lines with a working range of 20 m (without receiver)
- Working range of 50 m with the LR 7 Professional receiver (optional)
- Pendulum lock ensures safe transport
Technical data
| Laser diode | 500 – 540 nm, < 10 mW 630 – 650 nm, < 1mW |
| Operating temperature | -10 – 50 °C |
| Storage temperature | -20 – 70 °C |
| Laser class | 2 |
| Working range | 20 m |
| Working range with receiver | 50 m |
| Accuracy | ± 0.3 mm/m |
| Working range of laser points, max. | 10 m (top) 10 m (bottom) |
| Self-levelling range | ± 4° |
| Dust and splash protection | IP 54 |
| Operating time (max.) | 10 h (Li-Ion) and 4 h (4 x AA) in cross-line and point operation 13 h (Li-Ion) and 6 h (4 x AA) in cross-line operation 15 h (Li-Ion) and 12 h (4 x AA) in line operation 60 h (Li-Ion) and 32 h (4 x AA) in point operation |
| Tripod thread | 1/4" |
| Weight, approx. | 0.6 kg |

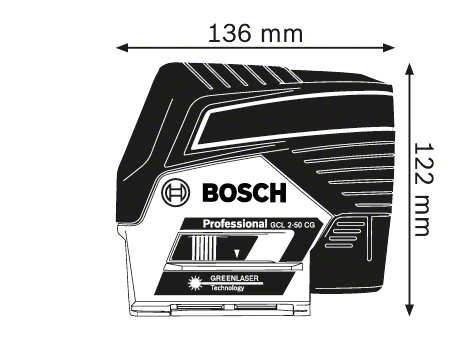

| Length x width x height | 136 x 55 x 122 mm |
| Colour of laser line | green |
| Projection | 2 lines / 2 points |
| Plumb point accuracy | ± 0.7 mm/m |
| Compatible laser receivers | LR 7 |
