Positioning

• Robust and intuitive 12V line laser for effortless alignment

User benefit

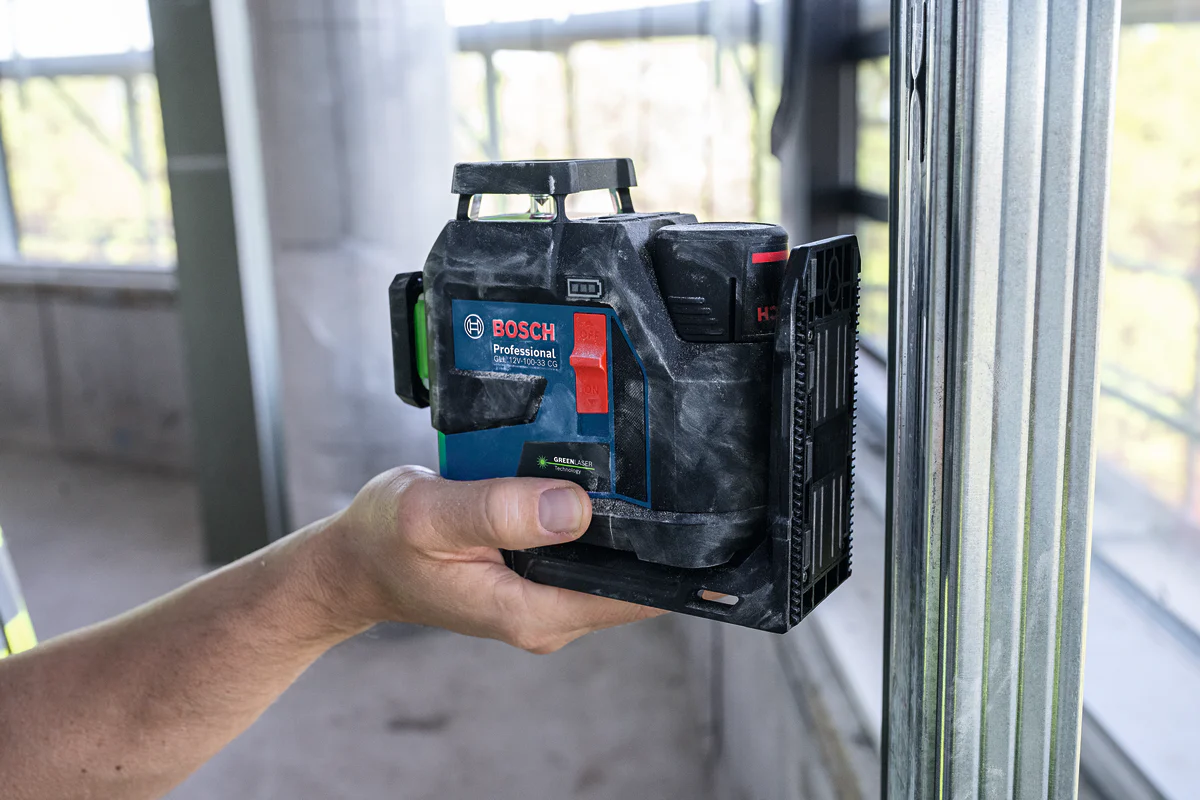

• Durable design with rubber enforced housing and IP65 rating ensures reliability in tough working conditions

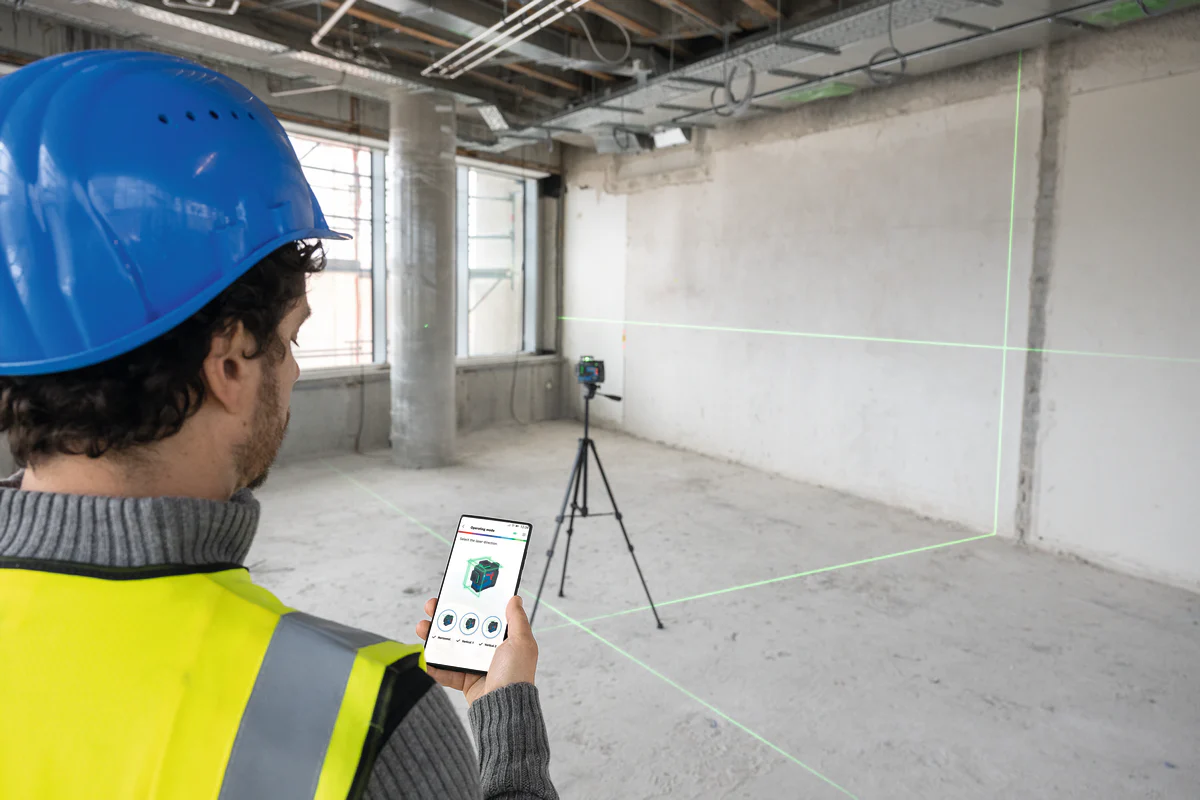

• Hands-free line control of the 3 x 360° laser lines via the Levelling Remote app for more accurate and time efficient working
• Experience uninterrupted work with the flexibility to switch between 12V Li-Ion battery and AA alkaline batteries, eliminating downtime due to battery drain

Product Highlights

• The GLL 12V-100-33 CG Professional is a robust line laser that offers easy and intuitive operation. It is designed to withstand tough jobsite conditions with its rubber enforced housing and laser windows and IP65 rating for dust and water resistance. The Levelling Remote app allows for remote control of the 3 x 360° laser lines, making operations more accurate and time efficient. Dual power source offers you the flexibility to switch between the 12V Li-Ion battery and AA alkaline batteries as a backup power source.

Equipment & Application

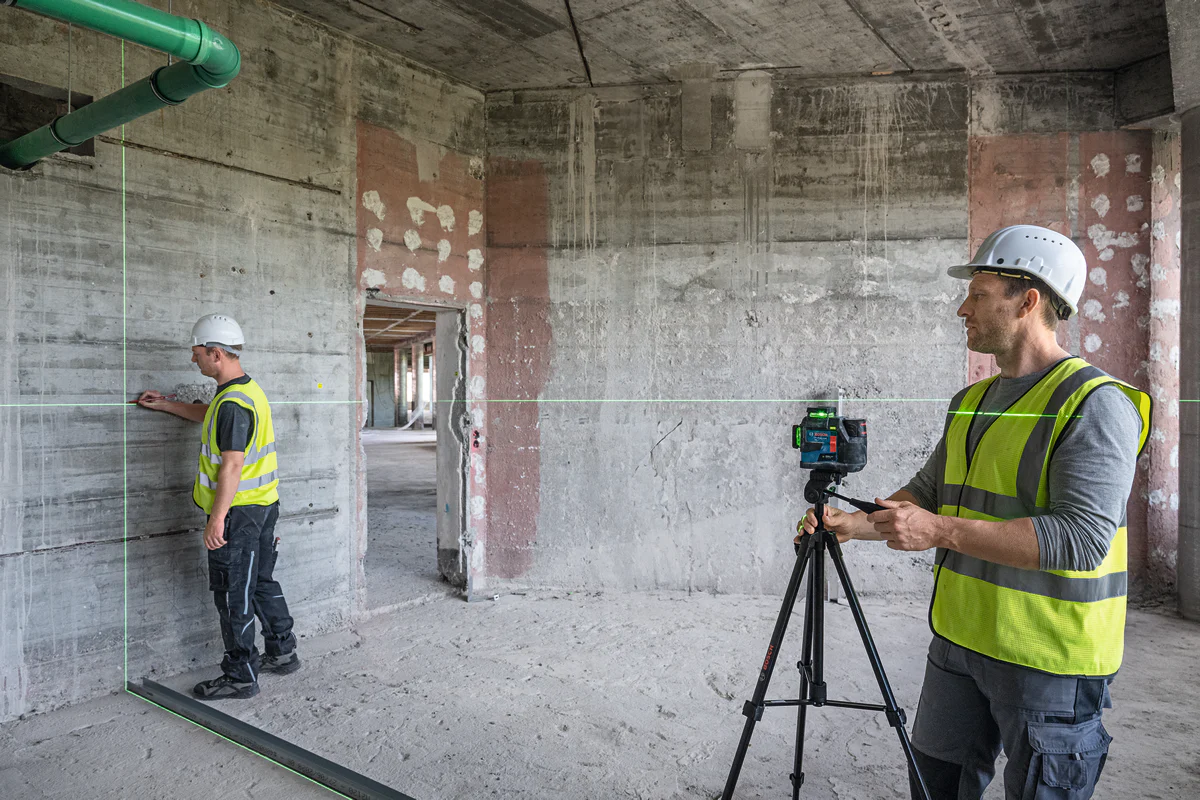

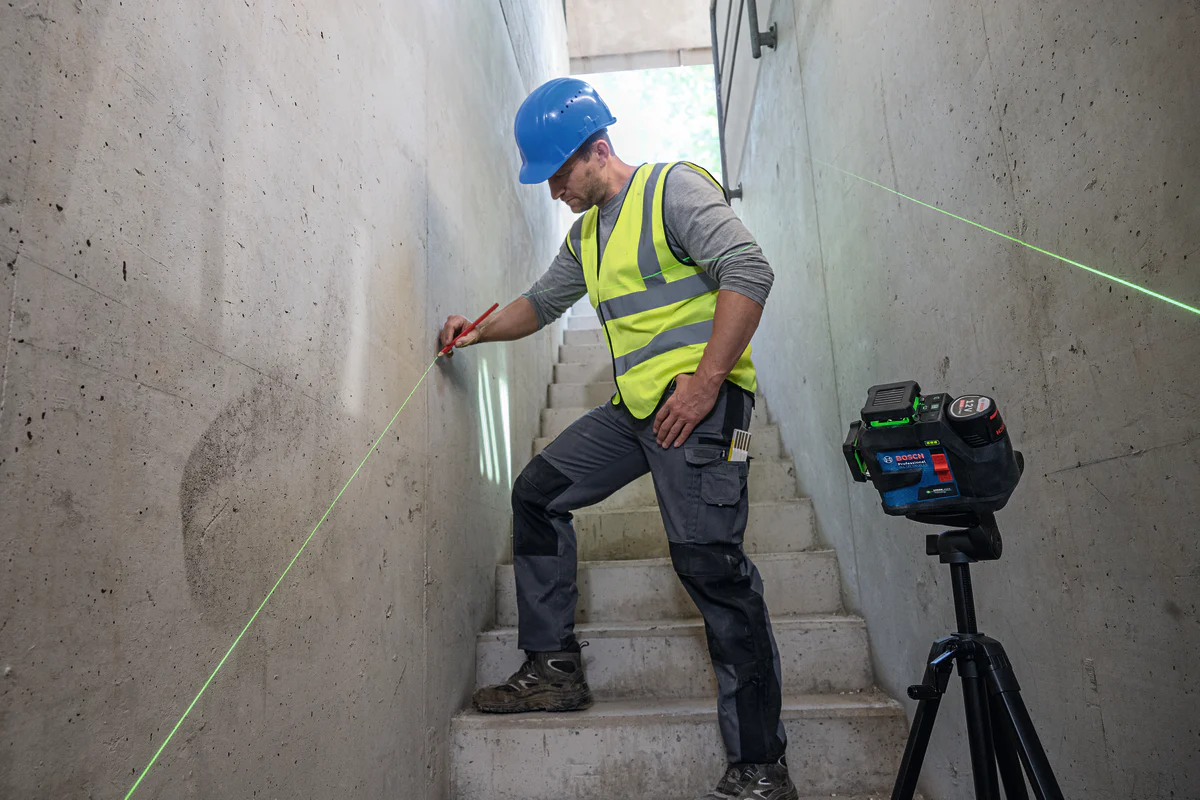

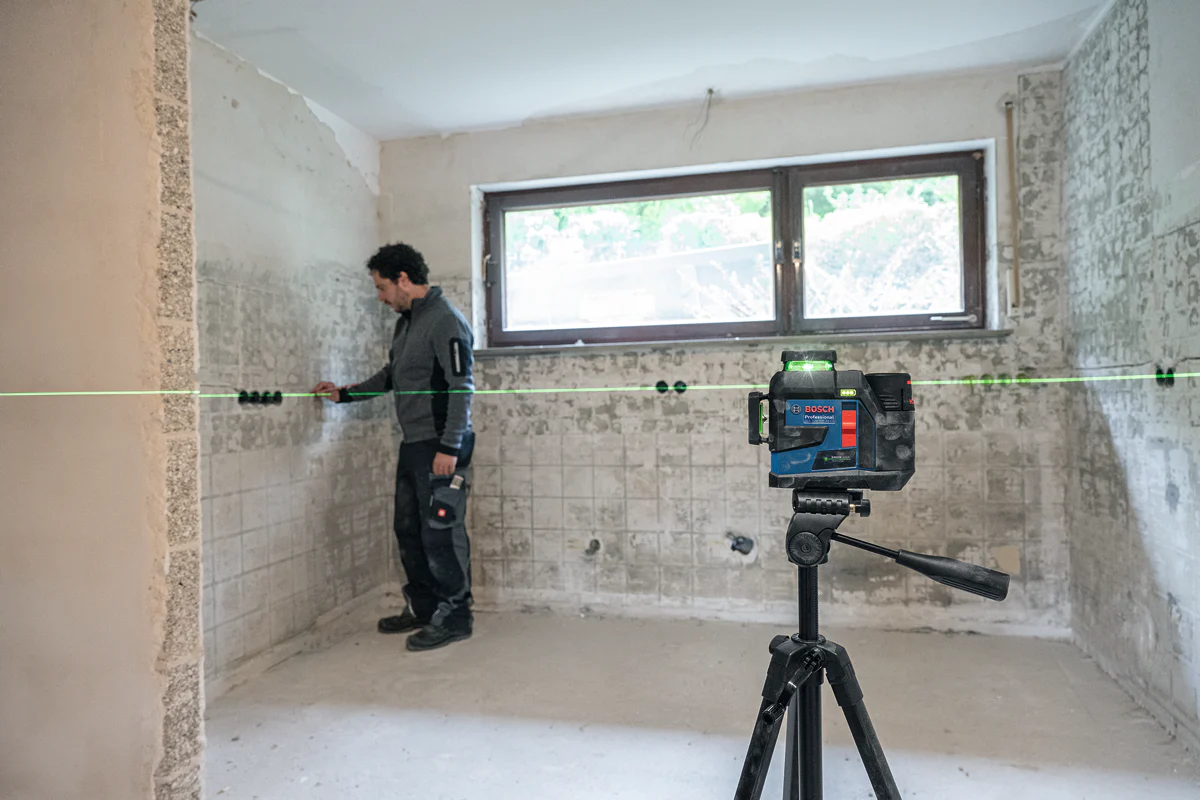

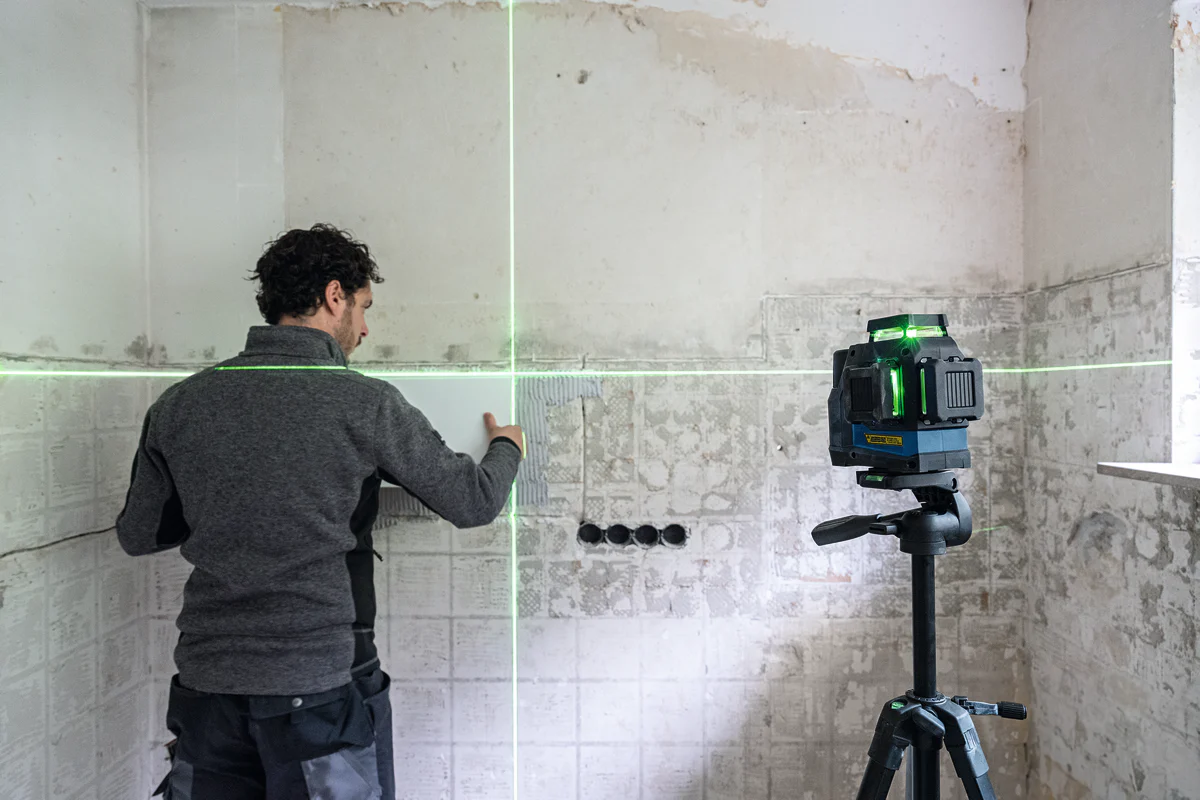

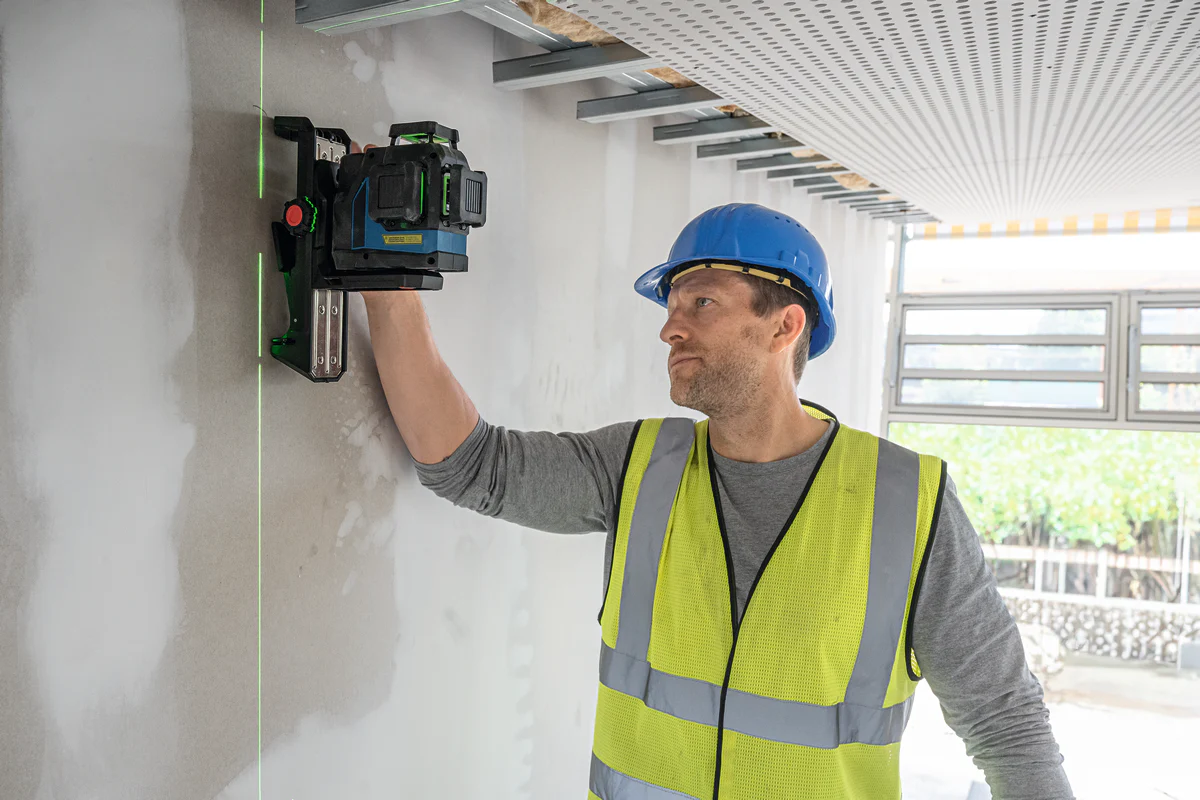

• Enjoy easy operation of the GLL 12V-100-33 CG with a new keypad design for clear laser line selection and a large battery indicator for convenience. The line laser is perfect for alignment of walls and partitions, tile and flooring installations, and staircase construction.

Additional Information

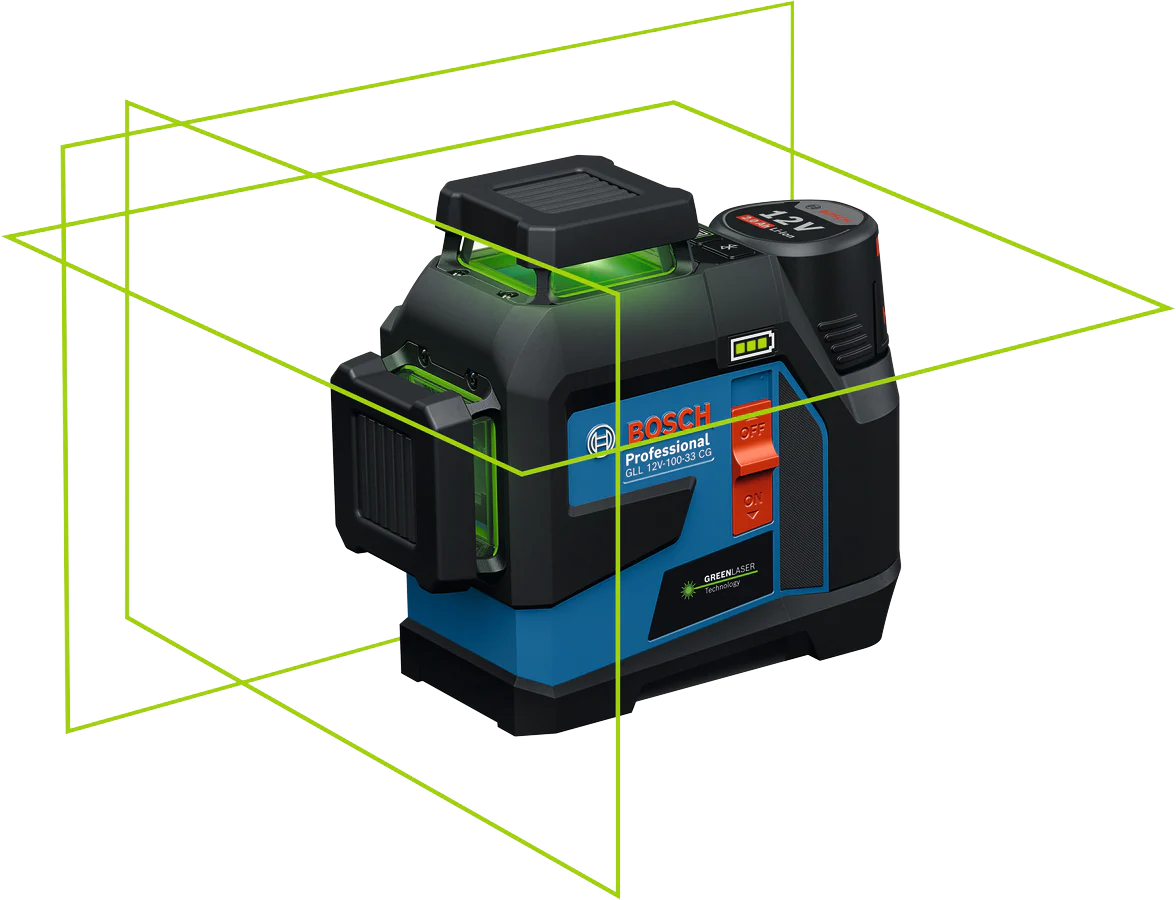

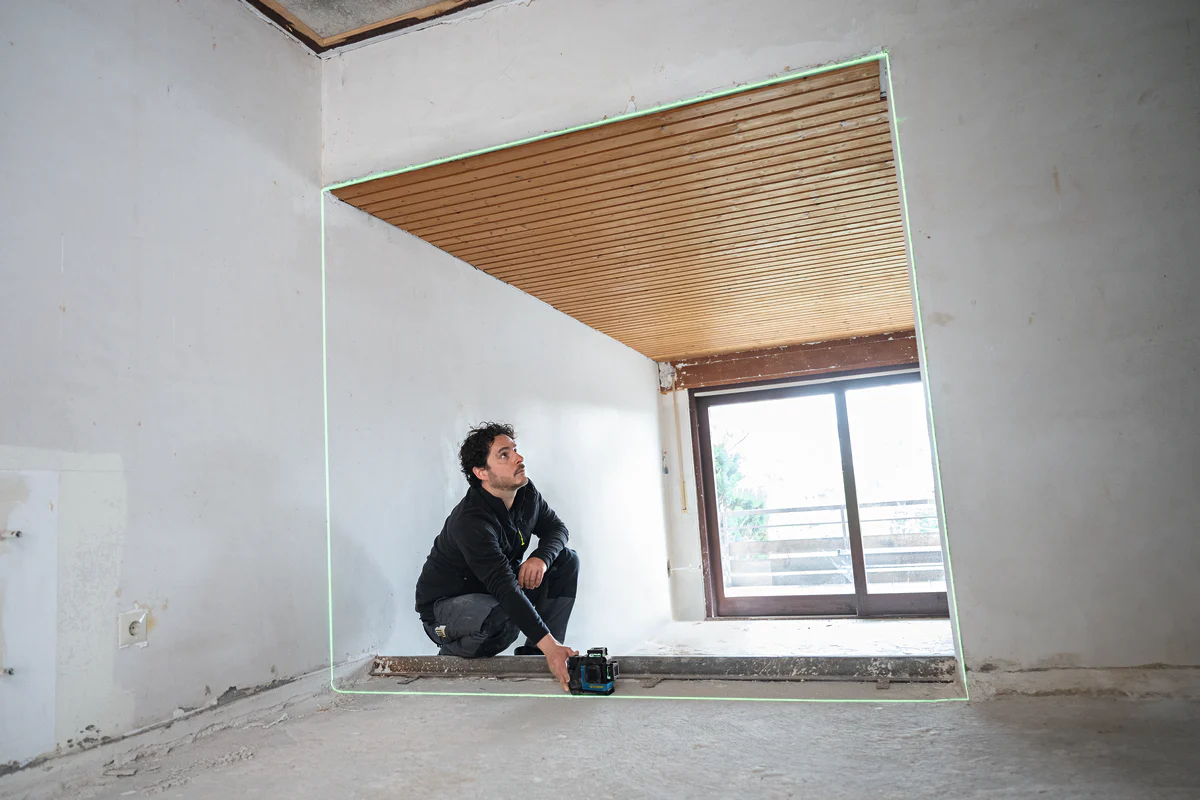

• It features 3 x 360° lines for simultaneous horizontal and vertical levelling, allowing for easy layout of large spaces with just one tool. For starting right away, the GLL 12V-100-33 CG laser receiver mode is always activated. With the optional laser receiver LR 7 Professional you can extend the working range up to 100 metres (radius). The bright green laser lines offer up to four times better visibility than red lines, ensuring precision in every task.

Technical data

Battery voltage	12.0 V
Laser diode	500 – 540 nm, < 10 mW
Operating temperature	-10 – 40 °C
Storage temperature	-20 – 70 °C
Laser class	2
Working range, value	30 m
Working range with receiver	100 m (radius)
Accuracy	± 0.3 mm/m
Self-levelling range	± 4°
Levelling time	4 s
Dust and splash protection	IP65 (except for the battery or battery adapter)
Power supply	12 V Li-Ion battery 4 x 1.5 V LR6 (AA)
Operating time (max.)	6 h (Li-Ion) and 4 h (4 x AA) in 3-line mode
Tripod thread	1/4" 5/8"
Weight, approx.	0.96 kg
Colour of laser line	green
Projection	3 x 360° line
Compatible laser receivers	LR 7

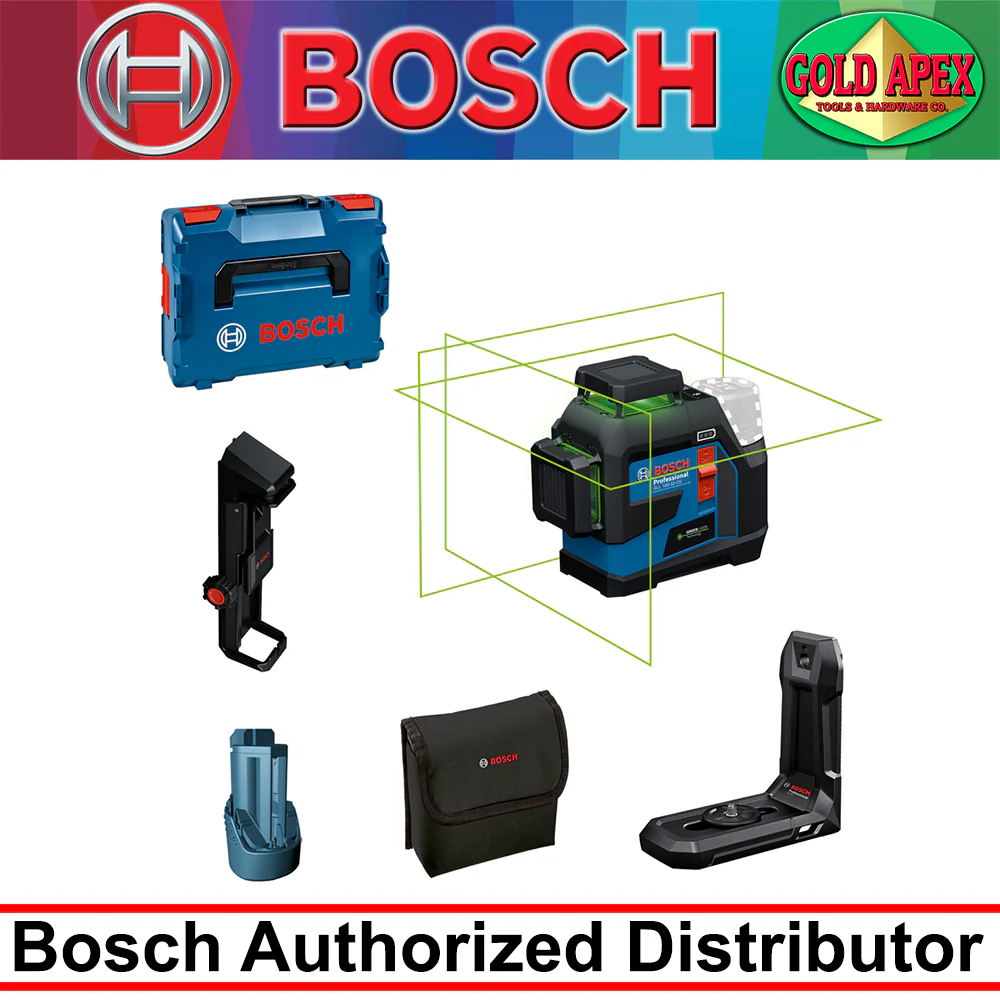

Tripod and Receiver not included.
