Bosch GLL 3-80 CG Line Laser
Line Laser
GLL 3-80 CG
0 601 063 U80 (Philippines)
Green supreme visibility in 3 x 360°. Simply connected.
- Up to four times better visibility due to the green laser lines

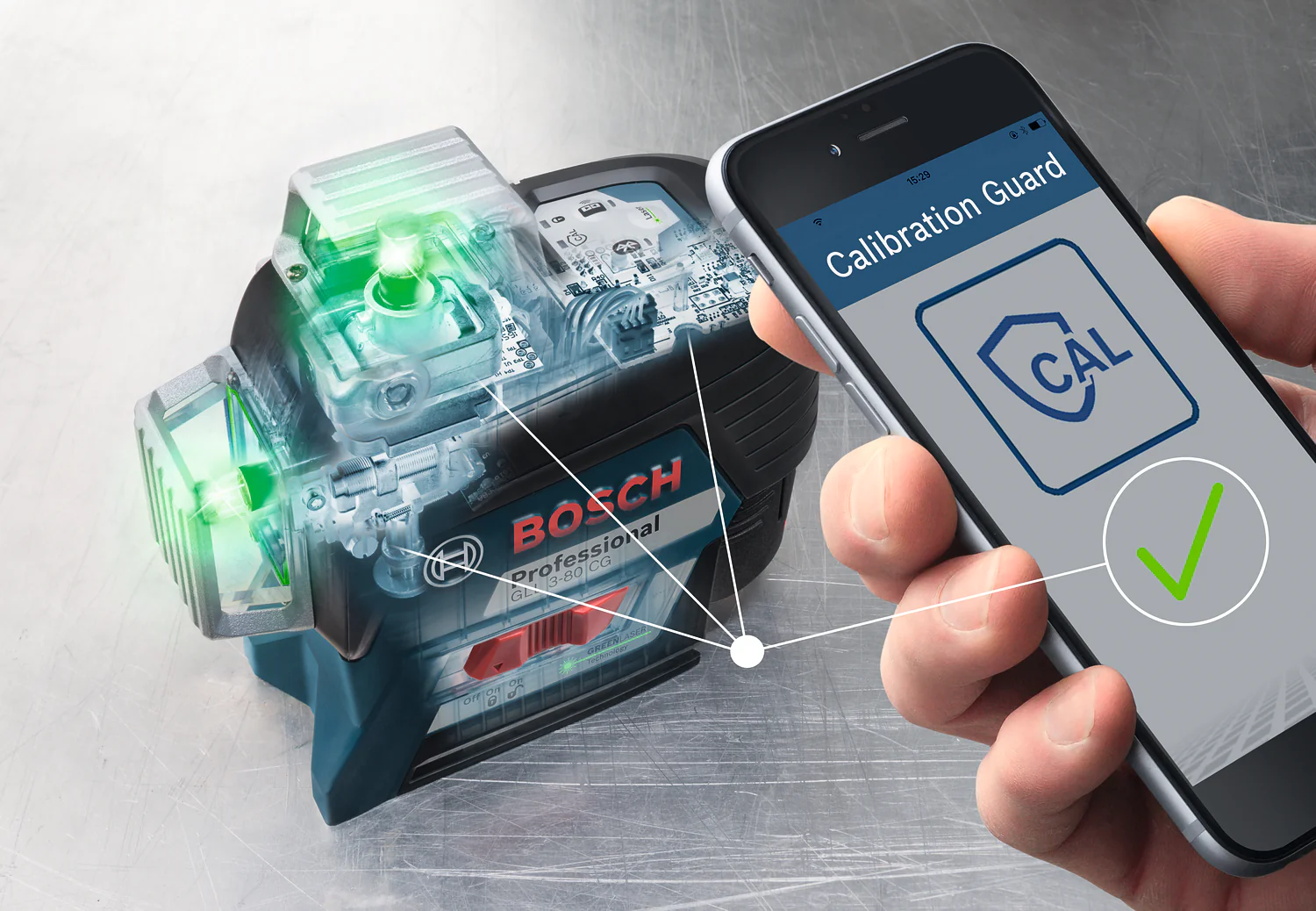

- Bluetooth® connection to your smartphone for remote control use and contactless adjustment of the tool
- High work efficiency due to 3 x 360° lines: Simultaneous performance of horizontal and vertical levelling applications in the entire room with only one tool
- Dual Power Source: Can be operated both with 12 V-LI-ion battery and with standard alkaline batteries
- Self-levelling (±4° in <4 sec), very precise (± 0.2 mm/m) and range of up to 120 m with the LR 7 Professional receiver (optional)
- Compact, easy to handle and extremely robust (IP54)
- Pendulum lock ensures safe transport
Technical data
| Laser diode | 500 – 540 nm, < 10 mW |
| Operating temperature | -10 – 40 °C |
| Storage temperature | -20 – 70 °C |
| Laser class | 2 |
| Working range | 30 m |
| Working range with receiver | 120 m (Diameter) |
| Working range without receiver | 30 m (Radius) |
| Accuracy | ± 0.2 mm/m |
| Self-levelling range | ± 4° |
| Levelling time | 4.0 s |
| Dust and splash protection | IP 54 |
| Power supply | 12 V Li-Ion battery 4 x 1.5 V LR6 (AA) |
| Operating time (max.) | 6 h (Li-Ion) and 4 h (4 x AA) in 3-line mode |
| Tripod thread | 1/4", 5/8" |
| Weight, approx. | 0.9 kg |
| Length x width x height | 162 x 84 x 148 mm |
| Colour of laser line | green |
| Projection | 3 x 360° line |
| Compatible laser receivers | LR 7 |
