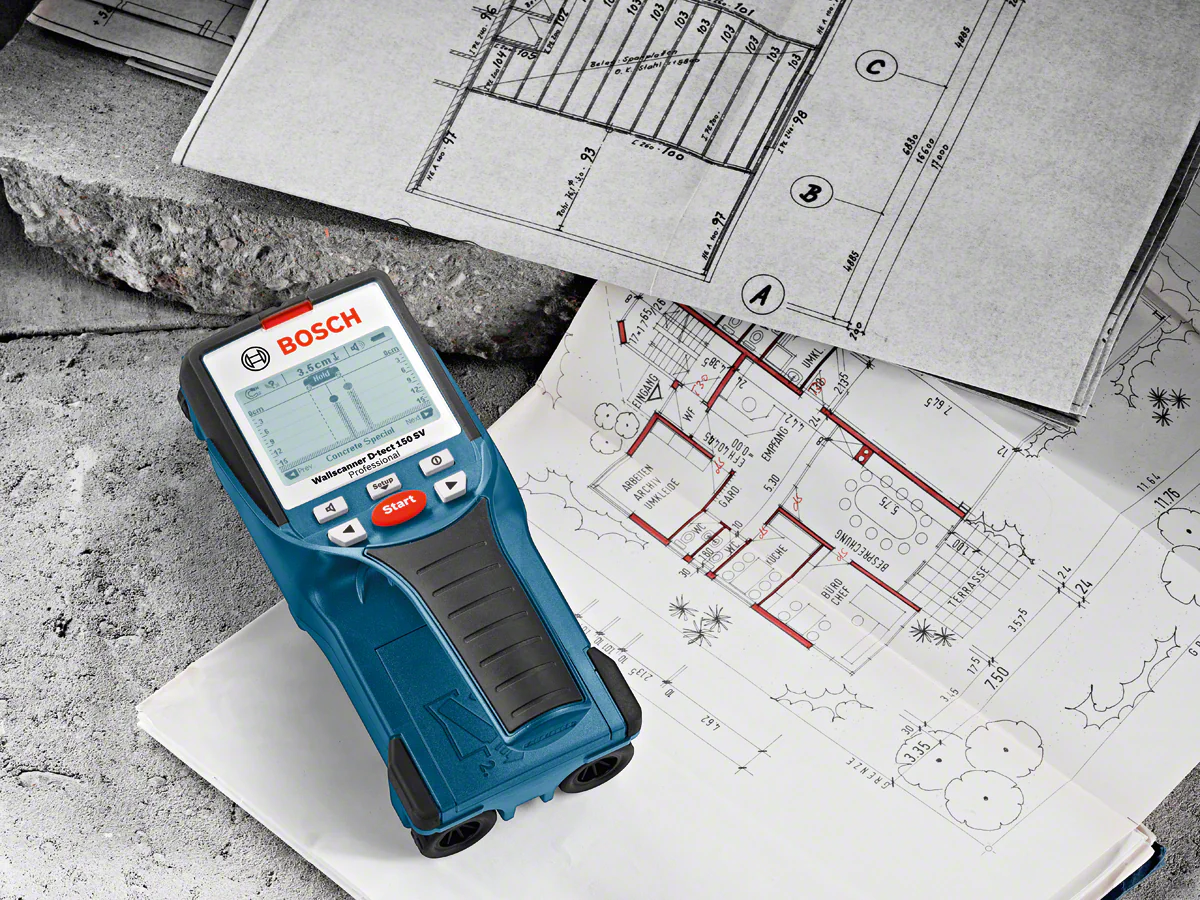

Bosch D-tect 150 SV Wall Scanner / Detector
The specialist for finding objects in difficult conditions

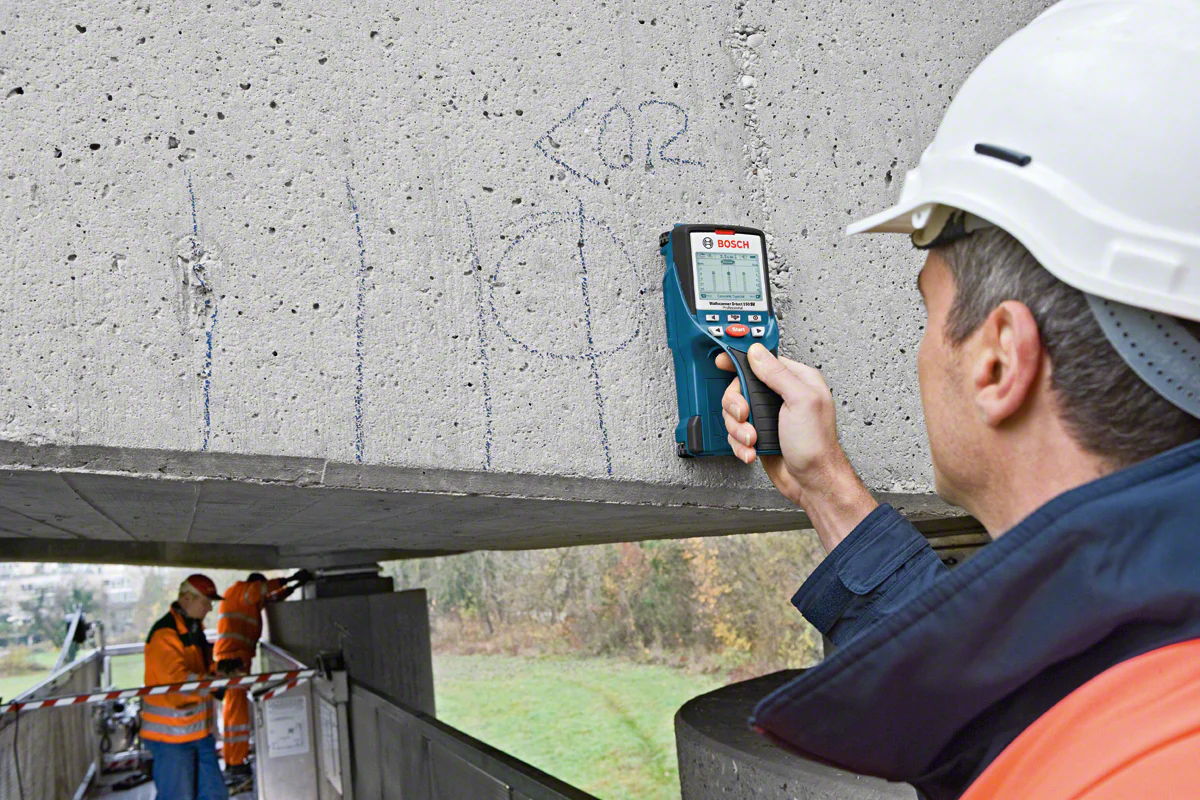

- Unique: More reliable detection of objects in damp concrete
- Millimetre-accurate detection of ferrous/non-ferrous metals, live cables, wooden studs and plastic pipes
- Digital display of material properties
- The actual object depth is displayed, making it easy to determine the actual level of concrete cover

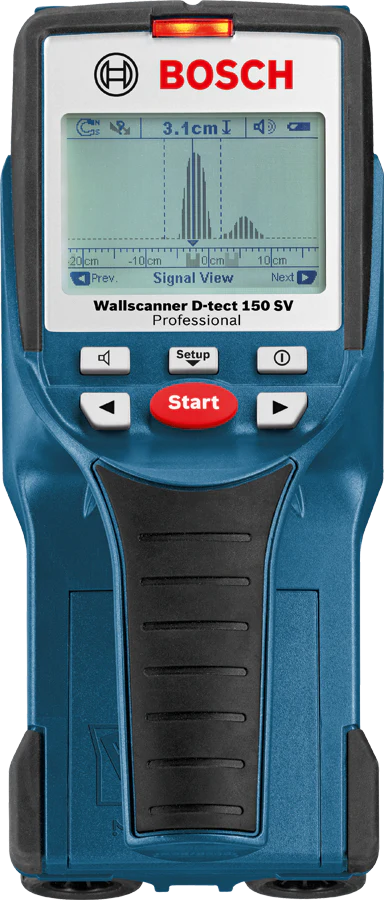

- The Signal View/SV displays objects that are very close together even more precisely

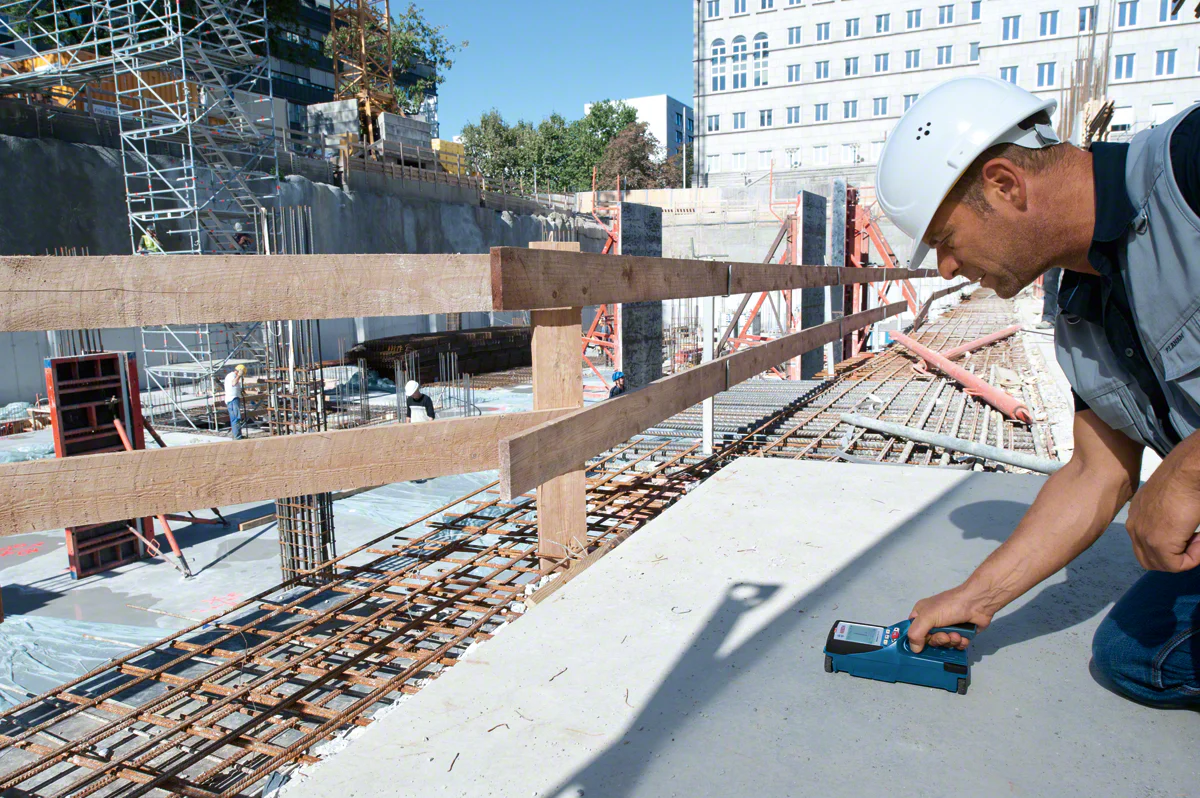

- The specialist for finding reinforcements with three operating modes for concrete
- Ruler View: measuring distances between objects, millimetre-accurate marking on the wall
- Requires no calibration
Technical data
| Detectable materials | Plastic pipes, ferrous metals, non-ferrous metals, wooden studs, live cables |
| Max. detection depth | 150.0 mm |
| Detection depth, steel, max. | 150.0 mm |
| Detection depth, copper, max. | 150.0 mm |
| Detection depth of live cables, max. | 60.0 mm |
| Detection depth of wooden substructures, max. | 40.0 mm |
| Accuracy | ± 5 |
| Automatic deactivation, approx. | 5 minutes |
| Power supply | 4 x 1.5 V LR6 (AA) |
| Weight, approx. | 0.65 kg |
| Length x width x height | 220 x 97 x 120 mm |
| Dust and splash protection | IP 54 |
| Additional function | Signal view, reliable measurements in damp concrete |
