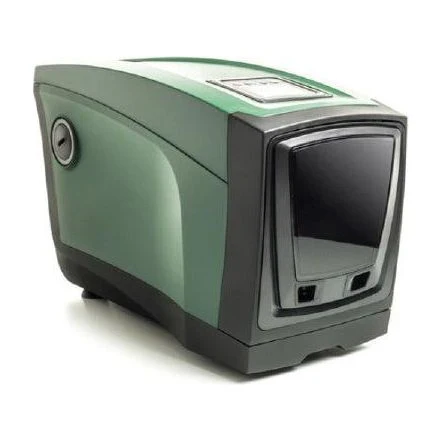

DAB ESYBOX Automatic Booster Pump System With Inverter
Automatic booster system with inverter
ESYBOX
Esybox is a patented booster system, unique in its category, with high performances, efficient, compact, easy and satisfying in the use both for the installer and the final user.
When Esybox mini is the solution for water boosting in small dwellings, Esybox offers the same advantages in collective residential applications, such as villas or condos. Wireless technology allows to set up booster sets up to 4 pumps.
Specifications
| Input current frequency | 50/60 Hz |
| Input current voltage |
1 x 220/240 ~ VAC
|
| Current intensity | 12 A |
| Maximum absorbed power - P1 | 1550 W |
| Overall dimensions |
565x265x352 mm without feet
|
| Empty weight (excluding packaging) | 24,8 kg |
| Protection class | IP x4 |
| Motor insulation class | F |
| Maximum head | 65 m |
| Maximum flow rate | 120 l/min |
| Priming | <5min at 8m |
| Maximum working pressure | 8 bar |
| Liquid temperature max | 40 °C |
| Environment temperature max | 50 °C |
| Storage environment temperature | -10÷60 °C |
