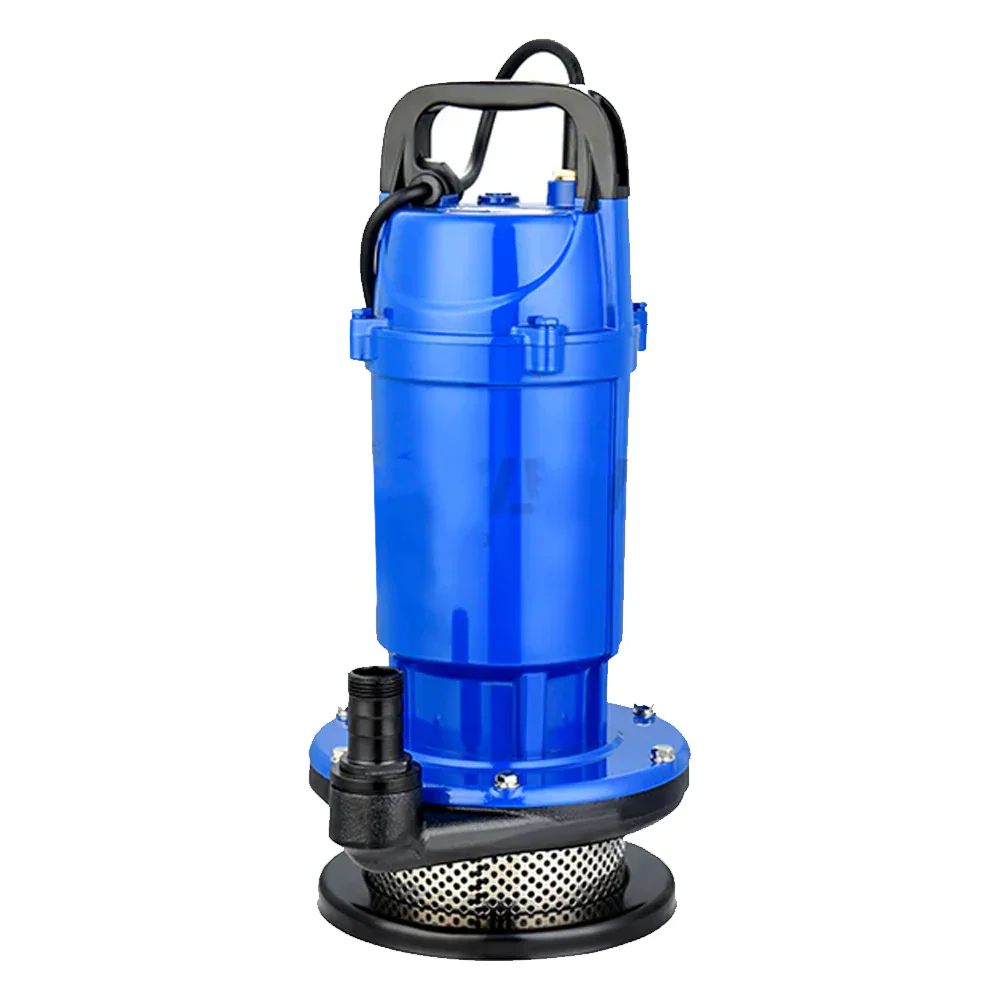

Dayuan QDX1.5-16-0.37FK Submersible Pump 0.5HP

For Countryside lifting water from, water supply and drainage of farmland, garden and daily life. Drainage of industry ponding, building construction and breeding.

Features:

Operating Limits

• Trans medium's PH: 6-8.5
• Fluid temperature limit <40°C
• Max ambient temperature <40°C
• Operating depth: 5m

Structural Characteristics

• Insulation class: B
• Protection Class: IP68

Material

• Pump body: Cast Iron
• Impeller: Aluminum / PPO
• Motor shaft: Stainless steel
• Mechanical seal: Ceramic-Graphite
• Suction stainer: Stainless steel
• 100% Copper Wire

Type	KW	HP	Speed	Rated Flow	Rated Head	Q Max.	H Max	Dia.	Current
QDX1.5-16-0.37FK	0.37	0.5	3450	1.5M3/h	16m	5.8m3/h	17.4m	25mm	2.9A
