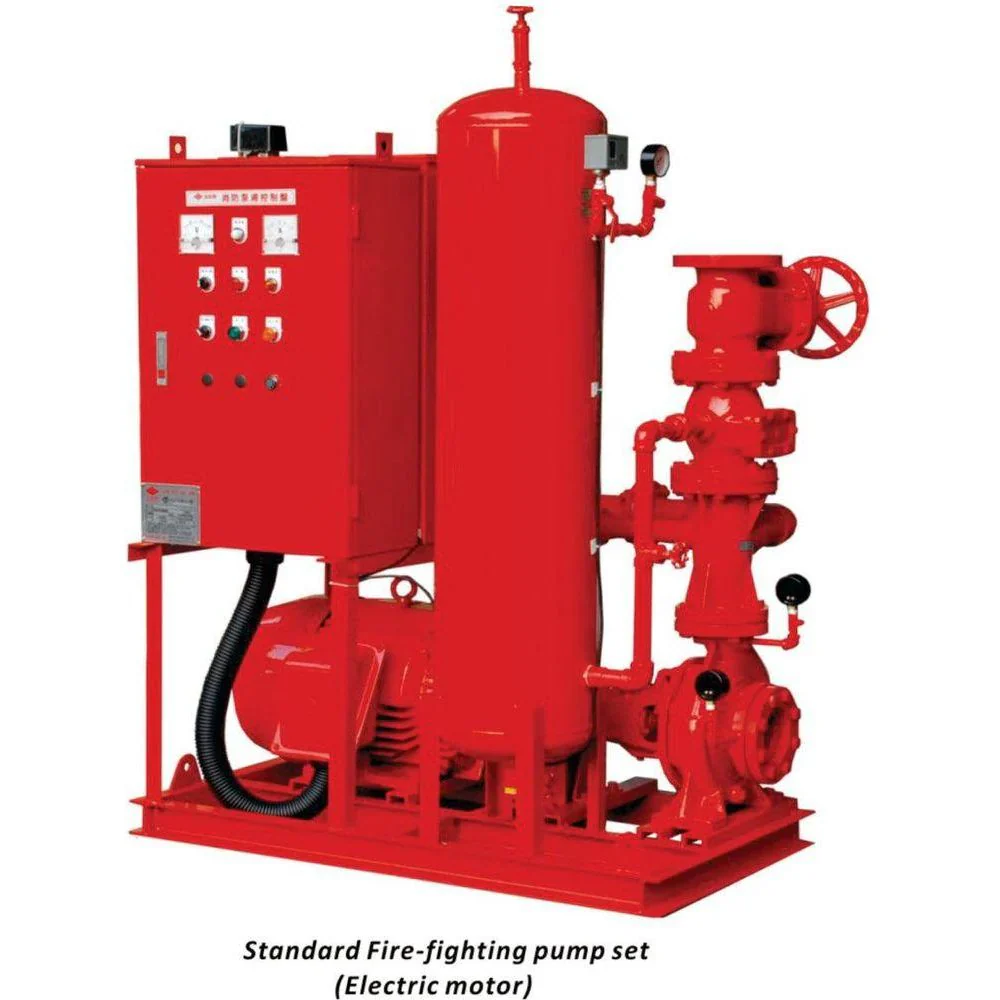

Evergush Fire Fighting Pump Set
|
Model
|
Without Jockey Pump | With Jockey Pump | |
| FF80-XA3220-27.5 | FF100-XA5016-211 | FF100-XA5016-211 | |
| Rated Q: | 13m3/hr | 46m3/hr | 46m3/hr |
| Rated H: | 61 meters | 45 meters | 45 meters |
| Driven Electric Motor: | 3 Phase/ 220V~60Hz 3500 rpm / 7.5KW (10HP) |
3 Phase/ 220V~60Hz 3500 rpm / 11KW (15HP) |
3 Phase/ 220V~60Hz 3500 rpm / 11KW (15HP) |
| Suction Pipe: | 80mm (3") | 100mm (4") | 100mm (4") |
| Discharge Pipe: | 80mm (3") | 100mm (4") | 100mm (4") |
| Price | ₱235,000.00 | ₱320,000.00 | ₱498,000.00 |
Jockey Pump Function & Specifications
In order to avoid frequent running of main pump due to minor water leakage or small water volume required, the mounting of jockey pump is purposed to take care of the leakage or small water volume in this regard. Jockey Pump will be started/stopped when there is an occurrence of water leakage taken place to the pipeline while the main pump will not be started.
| Model | ECDL2-4 |
| Rated Q: | 4m3/hr |
| Rated H: | 22 meters |
| Driven Electric Motor: | 3 Phase/ 220V~60Hz 3500 rpm / 1.1 kW (1.5HP) |
| Suction Pipe: | 40mm (1.5") |
| Discharge Pipe: | 40mm (1.5") |
