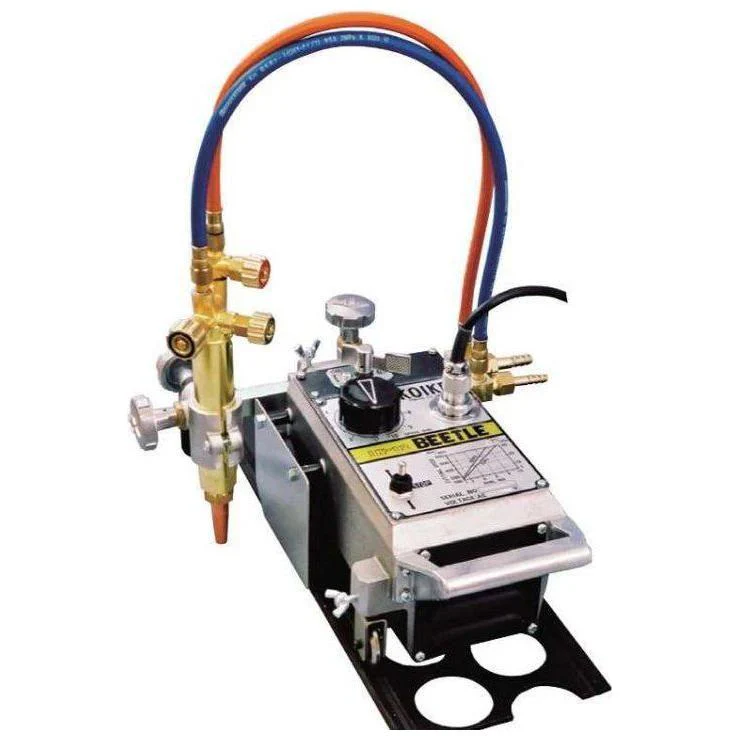

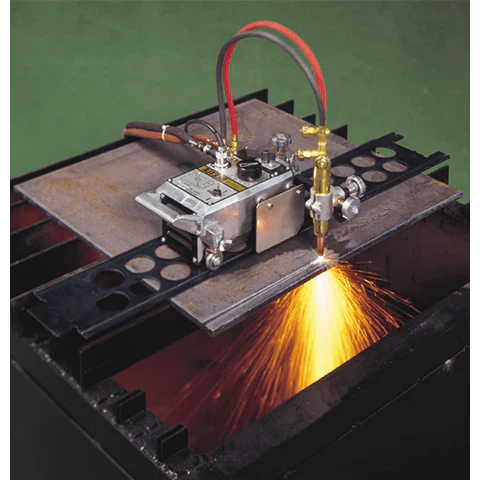

The IK-12 Beetle is a high quality motorized hand cutting machine. The operator can perform all types of cutting with ease (circle and bevel cutting). The drive system (continuous mechanical feed change) guarantees a constant and stable movement of the machine. The travel functions (forwards, backwards, stop) are activated only by one operation element.

• The travel functions (forwards, backwards, stop) are activated only by one operation element.
• The drive system (continuous mechanical feed change) guarantees a constant and stable movement of the machine.
• Low weight of 9.5 kg (Easy handling and transport)
• Attaching two machine torches allows parallel- and Y-bevel cutting.

Usage

• Straight-Line
• Circle

Cutting thickness	5-50 mm (by standard accessories)
Cutting speed	150-800 mm/min
Transmission system	Single cone system
Total length	360 mm
Track width	160 mm
Type of gas	Acetylene, Propane
Weight	9.5 kg (Single Torch Set included)

Main Components and Accessories

- Cutting Machine Body [IK-12 BEETLE]
- Power Cable (5M)
- Instruction Manual
- Single Torch Set
- Cutting Tip 106 type #0, 1, 2
