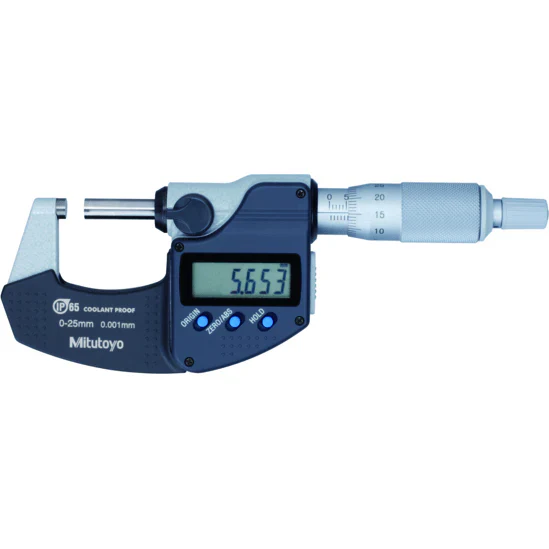

Mitutoyo 293-240-30 Digital Micrometer 25mm (IP65 Coolant Proof)
Mitutoyo 293-240-30 Digital Micrometer 25mm (IP65 Coolant Proof)
0-25mm, w/o Output
| Code | Range | Resolution |
| IMetric | ||
| 293-240-30 | 0-25mm |
0.001mm |
This IP65 micrometer offers outstanding accuracy, without data output, is highly robust and offers the following benefits:
- Oil-resistant material used for all plastic parts
- Extraordinary battery life of 2,4 years

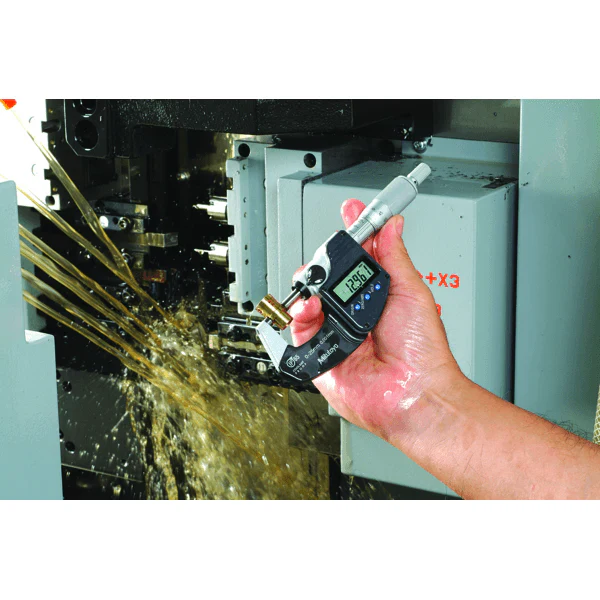

- Excellent resistance against water and dust enables this micrometer to be used in machining situations that include splashing coolant fluid.
Technical Data
| Digital/Analog: |
Digital
|
| Inch-Metric: |
Metric
|
| Range: |
0 - 25 mm
|
| Digital step: |
0.001 mm
|
| Max. Permissible Error J MPE: |
±1 µm
|
| Flatness: |
0.3 µm
|
| Parallelism: |
1 µm
|
| Data output: |
No
|
| Display: |
LCD, character height 7.5 mm
|
| Measuring spindle: |
With spindle lock, ø6.35 mm, spindle pitch 0.5 mm
|
| Scale: |
Thimble and sleeve satin chrome finish, ø18 mm
|
| Measuring force: |
5.0 - 10.0 N
|
| Power supply: |
1 battery SR-44
|
| Battery life: |
Approx. 2.4 years
|
| Delivered: |
including box, key, 1 battery, gauge block (from 25 mm upward), up to 50 mm measuring range with factory certificate
|
| ABS / INC (INC ZERO): |
Yes
|
| Auto Power OFF after 20 min. non use: |
Yes
|
| Function lock: |
Yes
|
| HOLD: |
Yes
|
| Mass: |
270 g
|
