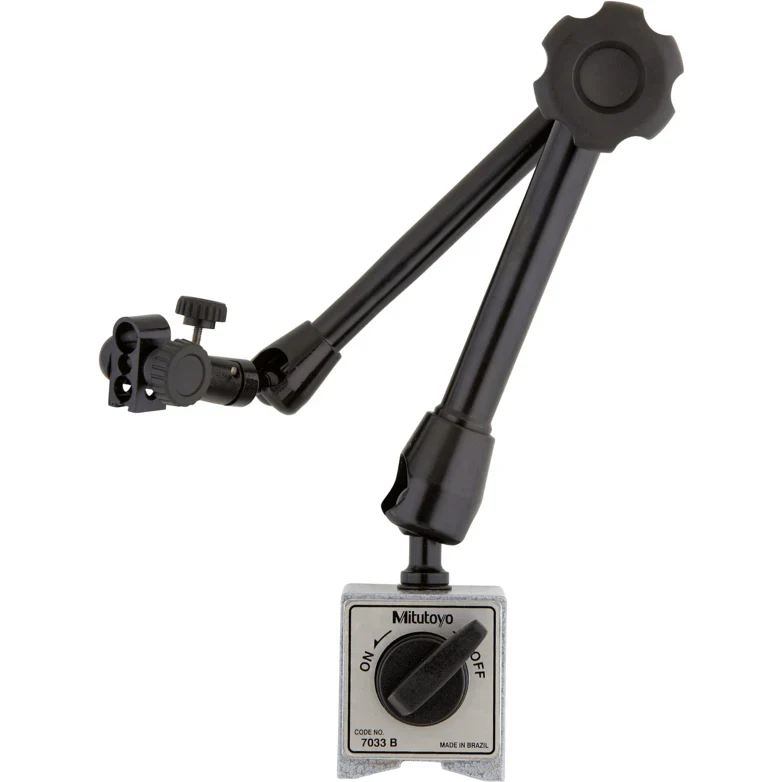

Mitutoyo 7033-10 Universal Magnetic Stand (Jointed)
Mitutoyo 7033-10 Universal Magnetic Stand (Jointed)
This jointed magnetic stand offers you the following benefits:
- It comes with a mechanical locking system and allows fine adjustment.

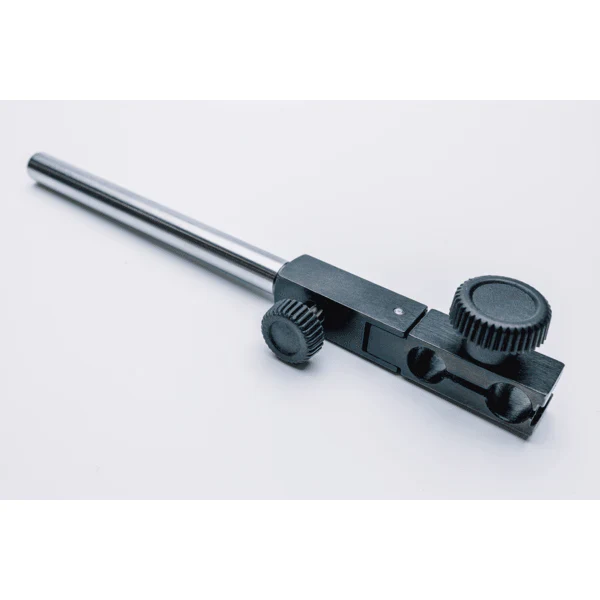

- You can also fix a dial indicator in any position by mechanically clamping the articulated arm.
| Clamping device: |
Magnetic
|
| Clamping force (vertical): |
600 N
|
| Base size (LxWxH): |
59 x 50 x 55 mm
|
| Total height: |
425 mm
|
| Fine adjustment °: |
±4
|
| Fine adjustment: |
with fine feed wheel +-4°
|
| Stem hole ø: |
6 mm, 8 mm, 9.53 mm, dovetail
|
| Working radius: |
346 mm
|
| Thread Arm/Base: |
M8 x 1.25
|
| Mass: |
1.75 kg
|
Picture is for reference only. Actual item may vary.
