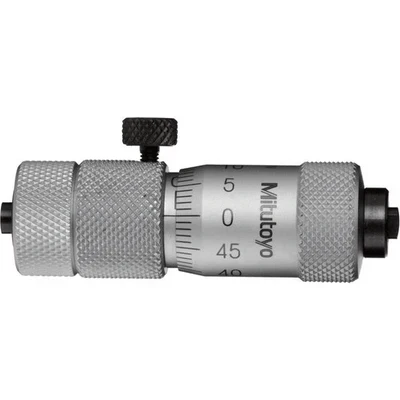

Mitutoyo Tubular Inside Micrometer, Series 137 (Extension Rod Type)

Product image 1

Mitutoyo Tubular Inside Micrometer, Series 137 (Extension Rod Type)

Mitutoyo Tubular Inside Micrometer, Series 137 (Extension Rod Type)

Mitutoyo Tubular Inside Micrometer, Series 137 (Extension Rod Type)

  • Wide range of ID measurements by combining extension rods (pipes) and anvils with the micrometer head.
  • Carbide-tipped measuring faces are available.
  • Supplied in fitted plastic case except 1500mm / 60” come in wooden case.

      Technical Data

      Metric Model
      Accuracy: ±(3+n+L/50)μm
      L=Maximum measuring length (mm)
      n=Number of rods
      Fraction rounded up
      Inch Model
      Accuracy: ±{.00015+.00005n+.00005R*/2}"
      R=Maximum measuring length (inch)
      n=Number of rods
      Fraction rounded up
      Graduation: 0.01mm or .001"

      Tubular Inside Micrometer, Series 137 (Extension Rod Type)
      Code Model Range Graduation Price
      Metric
      137-201 50-150mm 0.01mm ₱10,000.00
      $56.72

      Original: $162.06

      -65%
      Mitutoyo Tubular Inside Micrometer, Series 137 (Extension Rod Type)—

      $162.06

      $56.72

      Product Information

      Shipping & Returns

      Description

      Mitutoyo Tubular Inside Micrometer, Series 137 (Extension Rod Type)

      • Wide range of ID measurements by combining extension rods (pipes) and anvils with the micrometer head.
      • Carbide-tipped measuring faces are available.
      • Supplied in fitted plastic case except 1500mm / 60” come in wooden case.

          Technical Data

          Metric Model
          Accuracy: ±(3+n+L/50)μm
          L=Maximum measuring length (mm)
          n=Number of rods
          Fraction rounded up
          Inch Model
          Accuracy: ±{.00015+.00005n+.00005R*/2}"
          R=Maximum measuring length (inch)
          n=Number of rods
          Fraction rounded up
          Graduation: 0.01mm or .001"

          Tubular Inside Micrometer, Series 137 (Extension Rod Type)
          Code Model Range Graduation Price
          Metric
          137-201 50-150mm 0.01mm ₱10,000.00
