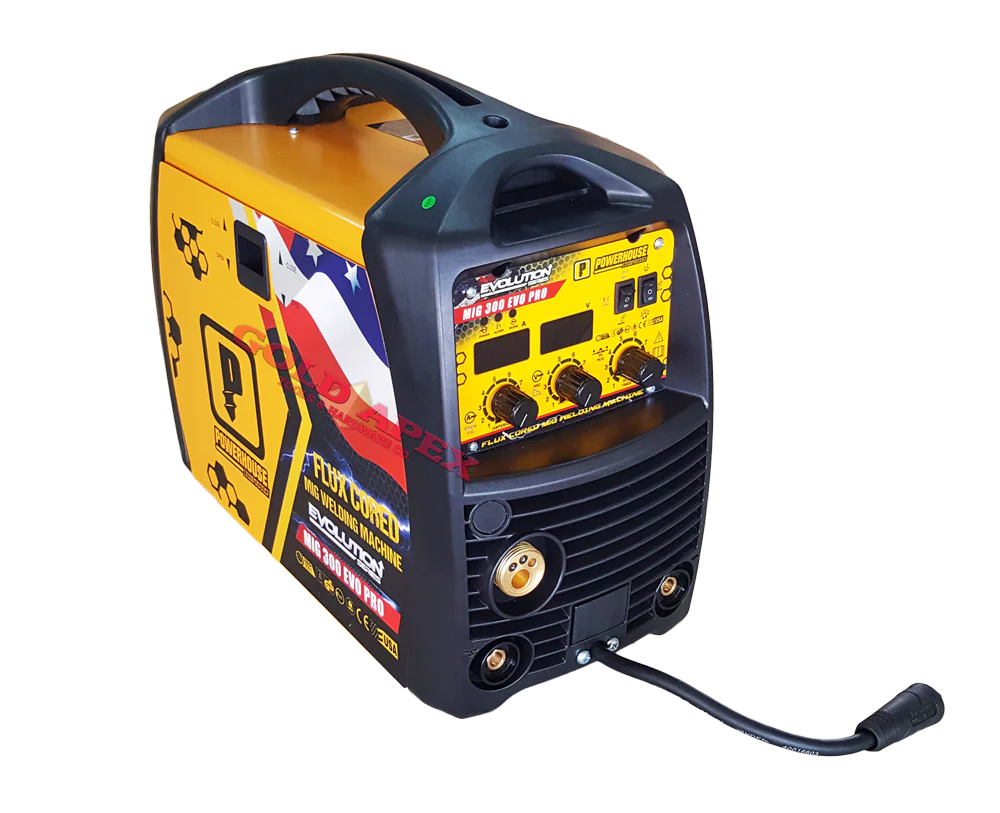

Powerhouse MIG 300 EVO PRO 3in1 (MIG-TIG-ARC) DC Inverter Welding Machine
3in1 DC Inverter Welding Machine
MIG , TIG , ARC/MMA
- DC Inverter MIG Welder.
- 1 Phase 220-240Vm 50/60 Hz AC Power
- 16 amp time delay fuse or circuit breaker is recommended.
- Ideal for Do-it-Yourself Projects or for light duty maintenance.
- MIG welding materials carbon steel and stainless steel
(depending on consumables used)
Specifications:
| Input Power V | 220 | 230 | 240 |
| Frequency Hz | 50/60 | ||
| Rated Input Current A | 32 | 31 | 29 |
| Rated Input capacitance | 7.04 | ||
| No-load voltage | 65 | 68 | 71 |
| Rated working voltage | 23 | ||
| MIG welding current | 30~300 | ||
| MMA welding current | 30~280 | ||
| TIG welding current | 20~300 | ||
| Rated duty cycle % | 20 | ||
| Welding current (10min) A | 20%@300 | ||
| 10min/100% | 134 | ||
| Efficiency | 85% | ||
| Power Factor | 0.7 | ||
| Insulation Class | F | ||
| Enclosure Protection | 21S | ||
| Cooling Type | Fan Cooled | ||
| Dimension L x W x H |
440 x 195 x 280 | ||
| Weight | 13 | ||
6 Months Service Warranty
