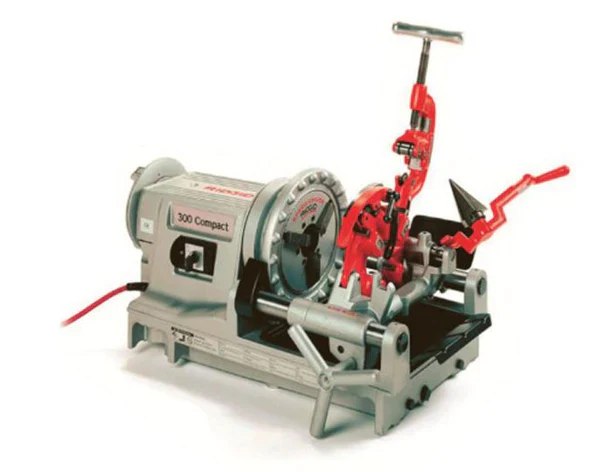

Ridgid 300 Compact Electric Pipe Threading Machine
Ridgid 300 Compact Electric Pipe Threading Machine
1/2 - 2 NPTFE
- Heavy-duty proven performance.
- Lightweight, portable design.
- Fast transport and set-up.
- Self-contained oil system with adjustable flow control.
- Versatility for threading and grooving.
- Quiet operation.
Specifications
| Pipe Capacity | 1/8" - 2" (3mm-50mm). |
| Bolt Capacity | 1/4" - 2" (6mm-50mm). |
| Motor Control | Heavy-duty rotary forward/off/reverse and integral foot switch. |
| Chuck | Hammer-type with replaceable, rocker-action jaw inserts. |
| Oiling System | Through-the-head, with integral oil reservoir with self-priming, constant-flow, gerotor pump |
| Catalog Number | Model No. | Voltage / Hertz | Power | Weight | Price |
| 54482/45048 | 300 Compact | 230V / 50-60Hz | 1700 Watts | 52.3 kg | ₱236,000.00 |
*Unit Set includes Universal Pipe Dies: 1/2~3/4" NPT & 1"~2" NPT Alloy
May change without prior notice.
Die Head
|
CATALOG NUMBER
|
MODEL NO.
|
DESCRIPTION
|
WEIGHT (kg)
|
Price
|
| 84537 | 816 | 816 1/8” - 3/4” NPT Die Head, Semi-Automatic, RH | 5.9 | ₱43,350.00 |
| 97045 | 531 | 531 1/4"-1"Bolt Die Head Quick-Open R.H./L.H. | 3.4 | ₱29,000.00 |
| 97050 | 532 | 532 1-1/8"-2"Bolt Die Head Quick-Open R.H./L.H. | 4.1 | ₱29,350.00 |
| 97065 | 811A | 811A 1/8” - 2” NPT Die Head, Self-Opening, RH | 5.7 | ₱42,150.00 |
| 97075 | 815A | 815A 1/8" - 2" BSPT Die Head, Self-Opening, RH | 5.9 | ₱41,150.00 |
| 84532 | 817 | 817 1” - 2” NPT Die Head, Semi-Automatic, RH | 5.9 | ₱43,350.00 |
| 97070 | 811A | 811A 1/8” - 2” BSPT Die Head, Self-Opening, RH | 5.7 | ₱42,150.00 |
| 97080 | 815A | 815A 1/8" - 2" BSPT Die Head, Self-Opening, RH | 5.9 | ₱44,000.00 |
Accessories
|
CATALOG NUMBER
|
MODEL NO.
|
DESCRIPTION
|
Price
|
| 51005 | 819 | 819 Nipple Chuck Complete, 1/2" - 2" NPT | ₱30,800.00 |
| 57662 | - | Adaptor, Groover 300CPT/1233 | ₱31,900.00 |
| 58160 | - | Chuck, Nipple 819 BSPT 1/2-2" | ₱32,300.00 |
Stands
|
CATALOG NUMBER
|
MODEL NO.
|
DESCRIPTION
|
Weight (kg)
|
Price
|
| 67657 | 250 | Folding Wheel Stand | 21 | ₱44,050.00 |
| 92457 | 100A | 100A Universal Leg & Tray Stand | 34.5 | ₱34,000.00 |
| 92462 | 150A | 150A Universal Wheel & Tray Stand | 46.7 | ₱60,350.00 |
| 92467 | 200A | 200A Universal Wheel & Cabinet Stand | 47.2 | ₱85,850.00 |
Optional Die Heads
Machine NPT Die Head
| Catalog Number | Description | Price |
| 23282 | 842 NPT LW L/Dies | ₱38,100.00 |
| 10491 | 555 L/Dies | ₱29,900.00 |
