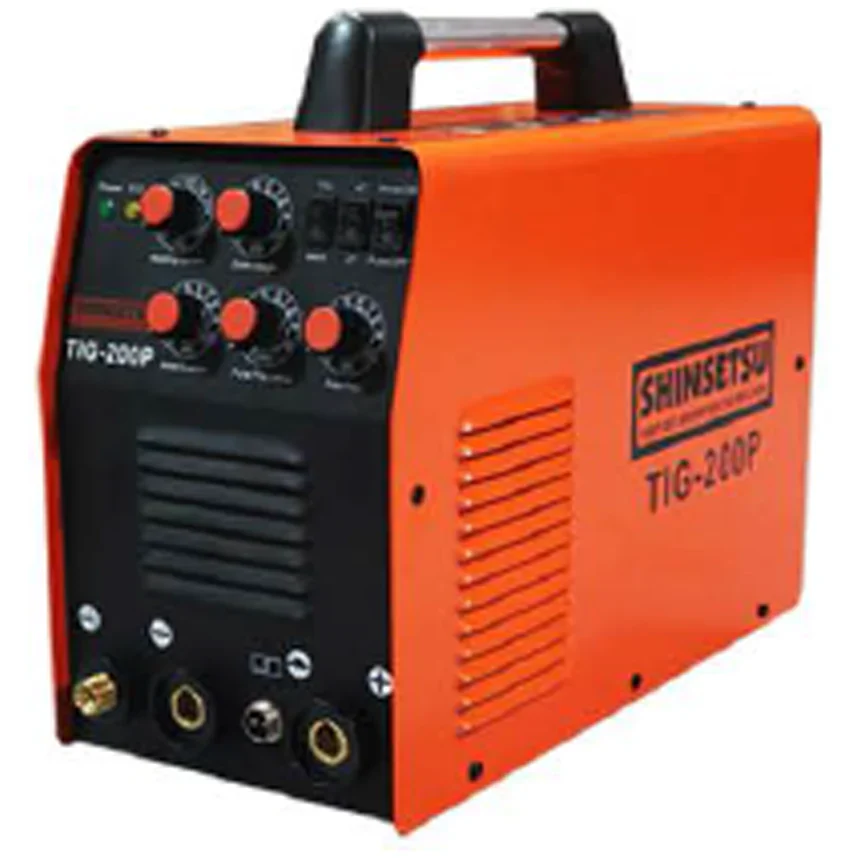

Shinsetsu TIG-200P Inverter Tig Welding Machine 200A

• Pulse TIG
• Input Power:   220 V
• Frequency:    60 Hz
• Phase:    1 Ph
• Rated Input Power:    5.6 kVA
• Rated Duty Cycle:    60 %
• Amperage Range (TIG & MMA}:   200 A/ 160 A
• Open Circuit Voltage:    56 V
• Rated Working Voltage: 11 - 18v
• Efficiency:  85%
• Power Factor:   0.76
• Insulation Class:   F
• Ignite Mode:   HF
• Dimension:  350 x 150 x 230 mm
• Net Weight:   12 Kg
• Gross Weight:   13 Kg


Inclusions:

• 1 pc Electrode Holder 300 A with Welding Cable 25 mm2
• 1 pc Ground Clamp 300 A with Welding Cable 16 mm2
• 1 pc Mask
• 1 pc Chipping Hammer
• 1 pc TIG Torch (Air-cooled)
• 1 pc Short Cap
• 1 pc Long Cap
• 2 pcs Collet
• 2 pcs Collet Body
• 3 pcs Alumina Cap
